C002332_15_CR3_User_Manual 46

Save Settings

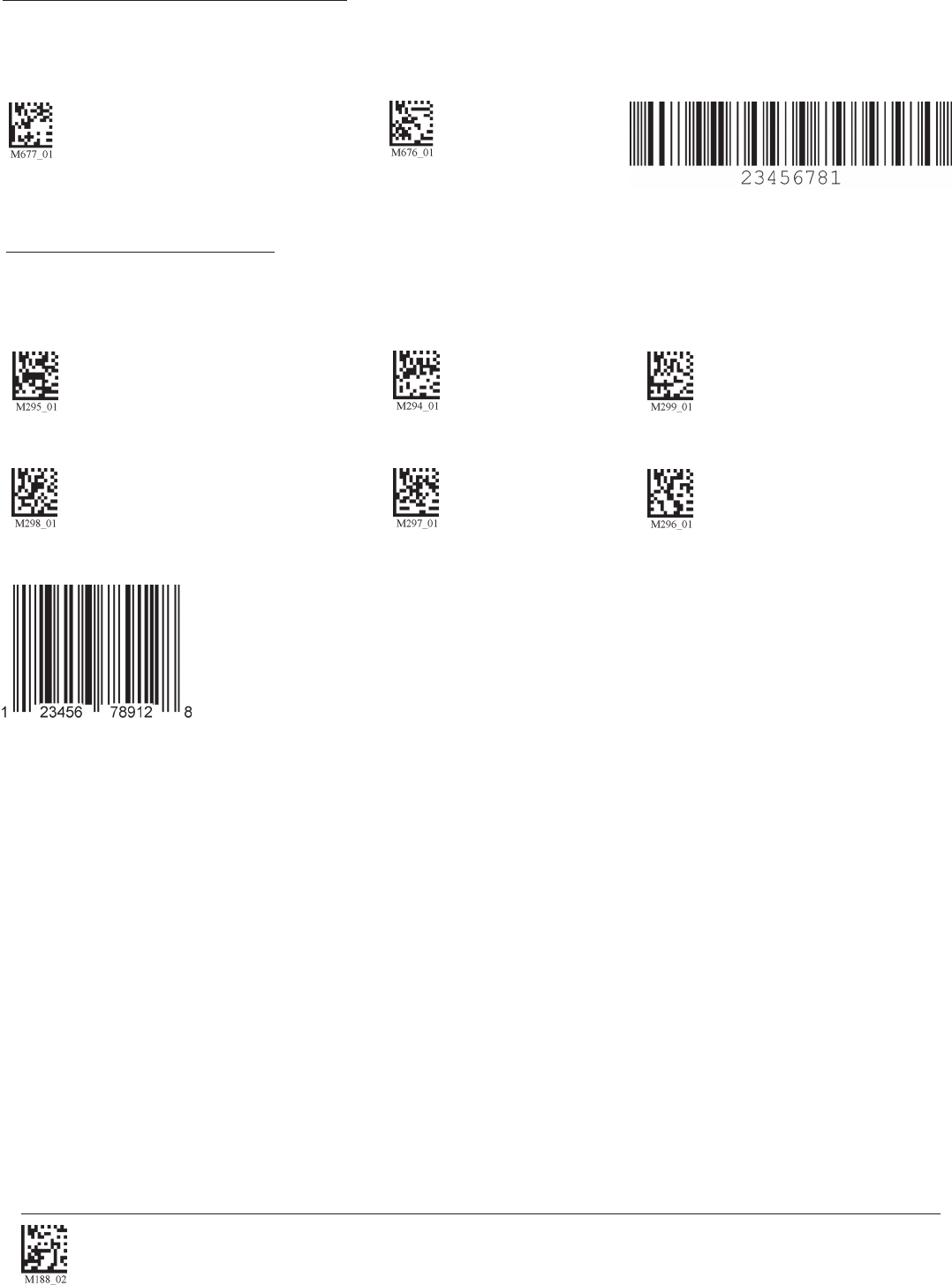

Scan the following codes to enable/disable Telepen symbology settings:

Telepen On - Default Telepen Off Sample Telepen

3.23 - Telepen Symbology

3.24 - UPC/EAN/JAN

Scan the following codes to enable/disable UPC/EAN/JAN symbology settings:

UPC On (Default) UPC Off UPC Short Margin Enabled

UPC Short Margin Disabled (Default) UPC Extension On UPC Extension Off

Sample UPC A Code
